Supralon™ Lube and Hydraulic Filter Elements
Breathing new life into your equipment

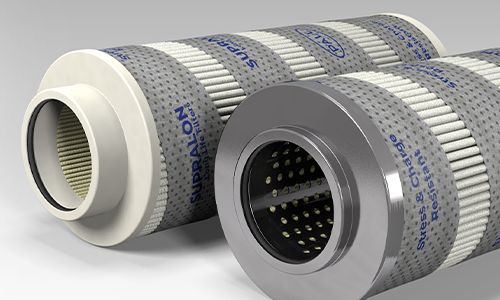

What are Supralon™ filter elements?
Supralon elements are high efficiency hydraulic and lube oil filter elements delivering βx(c) ≥ 2000 particle removal, anti static protection, and stress resistant media for consistent, long service life. They are designed as direct replacements for Pall Coralon® and Ultipor® III elements, enabling faster system clean up and reliable protection for critical equipment.
Cutaway illustration of a hydraulic filter housing featuring the internal Supralon filter element.
Key benefits of Supralon™
-
High filtration efficiency: Supralon™ elements provide rapid system clean up and strong particulate removal performance, helping achieve and maintain cleanliness levels more effectively than lower efficiency filters.
-
Stress Resistant Technology: This technology helps maintain stable filtration performance throughout the element’s service life, including under fluctuating operating conditions.
-
Anti static construction: Anti static design reduces charge accumulation in hydrocarbon fluids, which helps protect both the filter and downstream components.
-
Advanced asymmetric media pack: A tapered pore structure captures larger particles upstream and finer particles downstream, improving dirt holding capacity and supporting consistent cleanliness levels.
-
Compatibility: Supralon™ elements replace Coralon® and Ultipor® III HC series elements and are offered in configurations suitable for Ultipor® housings and selected alternative housings.
Filtration design and performance
Media pack pleating
The media pack is pleated, and the pleat height and count are optimized to maximize the effective filtration surface area.
Tapered pore structure
The highly porous, tapered pore structure enables the coarser upstream surface to act as a prefilter, capturing larger particles, while the finer downstream pores trap smaller particles.
Pleat geometry
Optimized pleat height, spacing and count promote uniform flow distribution and help reduce the risk of gel blockage in service.
Filter Structure Upstream
Filter Structure Downstream
Reinforced support layers
Upstream and downstream mesh layers help maintain structural stability, including during demanding operating conditions such as cold starts.
| Cleanliness Code Ratings | ||
|---|---|---|
| Media grade code | Rating (μm) ßx(c)>2000 based on ISO 16889 | CST based on SAE ARP 4205 |
| Z | 3 | 06/04/<1 |
| P | 5 | 12/08/<1 |
| N | 7 | 14/09/04 |
| S | 12 | 18/16/08 |
| T | 25 | 19/17/12 |
| Nominal filter length ranging from 4 to 39 inches | ||
| Seal material, fluorocarbon - other materials available upon application | ||
Supralon Hydraulic and Lube Oil Replacement Filter Elements
A full listing of available Supralon replacement elements is shown in the table below.
Media Grade ratings (µm) βX(C)≥ 2000 based on ISO 16889
-
3μm
-
5μm
-
7μm
-
12μm
-
25μm
| Product ID | Product Name | Shop Now |
|---|---|---|
| HC7400SRZ4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 4 inches | View Product > |
| HC9020FRZ8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 8 inches | View Product > |
| HC7500SRZ8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 8 inches | View Product > |
| HC9020FRZ4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 4 inches | View Product > |
| HC8314FRZ39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 39 inches | View Product > |
| HC8314FRZ16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 16 inches | View Product > |
| HC9100FRZ8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 8 inches | View Product > |
| HC8300FRZ16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 16 inches | View Product > |
| HC9600FRZ8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 8 inches | View Product > |
| HC9600FRZ13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 13 inches | View Product > |
| HC8304FRZ39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 39 inches | View Product > |
| HC8300FRZ39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 39 inches | View Product > |
| Product ID | Product Name | Shop Now |
|---|---|---|
| HC9100FRP4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 4 inches | View Product > |
| HC9600FRP8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 8 inches | View Product > |
| HC9601FHP8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 8 inches | View Product > |
| HC9601FHP16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 16 inches | View Product > |
| HC9600FRP16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 16 inches | View Product > |
| HC9021FHP8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 8 inches | View Product > |
| HC9021FHP4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 4 inches | View Product > |
| HC9020FRP4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 4 inches | View Product > |
| HC8314FRP39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 39 inches | View Product > |
| HC8300FRP16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 16 inches | View Product > |
| HC7500SRP8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 8 inches | View Product > |
| HC9600FRP4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 4 inches | View Product > |
| HC8314FRP16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 16 inches | View Product > |
| HC9601FHP13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 13 inches | View Product > |
| HC9801FHP8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 8 inches | View Product > |
| HC9801FHP4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 4 inches | View Product > |
| HC8300FRP39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 39 inches | View Product > |
| HC9100FRP8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 8 inches | View Product > |
| HC8304FRP39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 39 inches | View Product > |
| HC8300FRP8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 8 inches | View Product > |
| HC7500SRP4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 4 inches | View Product > |
| HC8900FRP16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 16 inches | View Product > |
| HC7400SRP4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 4 inches | View Product > |
| HC9800FRP8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 8 inches | View Product > |
| HC8304FRP16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 16 inches | View Product > |
| HC2296FRP36H50 | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 36 inches | View Product > |
| HC9604FRP13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 13 inches | View Product > |
| HC9800FRP4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 4 inches | View Product > |
| HC8900FRP13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 13 inches | View Product > |
| HC2296FRP18H50 | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 18 inches | View Product > |
| HC9700FRP9Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 9 inches | View Product > |
| HC8400FRP26Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 26 inches | View Product > |
| HC9604FRP16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 16 inches | View Product > |
| HC9901FHP26Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 26 inches | View Product > |
| HC9650FRP16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 16 inches | View Product > |
| HC9651FHP8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 8 inches | View Product > |
| HC9651FHP16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 16 inches | View Product > |
| HC2233FRP13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 13 inches | View Product > |
| HC7400SRP8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 8 inches | View Product > |
| HC9604FRP8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 8 inches | View Product > |
| HC2618FRP18Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 18 inches | View Product > |
| HCA064FRP8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 8 inches | View Product > |
| HC8900FRP26Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 26 inches | View Product > |
| HC9100FRP13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 13 inches | View Product > |
| HC9650FRP8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 8 inches | View Product > |
| HC9700FRP18Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 18 inches | View Product > |
| HC9020FRP8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 8 inches | View Product > |
| HC9600FRP13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 13 inches | View Product > |
| HC9601FHP4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 4 inches | View Product > |
| Product ID | Product Name | Shop Now |
|---|---|---|
| HC8500FRN13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 13 Inches | View Product > |
| HC2216FRN6Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 6 Inches | View Product > |
| HC6400FRN8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 Inches | View Product > |
| HC9400FRN26Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 26 inches | View Product > |
| HC8904FRN26Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 26 Inches | View Product > |
| HC9600FRN13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 13 inches | View Product > |
| HC9600FRN16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 16 inches | View Product > |
| HC8314FRN39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 39 inches | View Product > |
| HC8304FRN39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 39 inches | View Product > |
| HC7500SRN8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 inches | View Product > |
| HC8314FRN16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 16 inches | View Product > |
| HC7400SRN4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 4 inches | View Product > |
| HC8900FRN16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 16 inches | View Product > |
| HC8300FRN16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 16 inches | View Product > |
| HC8304FRN16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 16 inches | View Product > |
| HC9020FRN4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 4 inches | View Product > |
| HC9020FRN8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 inches | View Product > |
| HC9604FRN13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 13 inches | View Product > |
| HC9800FRN4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 4 inches | View Product > |
| HC9600FRN4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 4 inches | View Product > |
| HC9800FRN8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 inches | View Product > |
| HC9100FRN8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 inches | View Product > |
| HC8900FRN39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 39 inches | View Product > |
| HC9604FRN16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 16 inches | View Product > |
| HC2296FRN36H50 | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 36 inches | View Product > |
| HC8400FRN16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 16 inches | View Product > |
| HC6200FRN8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 inches | View Product > |
| HC2296FRN18H50 | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 18 inches | View Product > |
| HC9601FHN13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 13 inches | View Product > |
| HC7500SRN4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 4 inches | View Product > |
| HC8400FRN26Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 26 inches | View Product > |
| HC9650FRN8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 inches | View Product > |
| HC7400SRN8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 inches | View Product > |
| HC8900FRN13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 13 inches | View Product > |
| HC9601FHN16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 16 inches | View Product > |
| HC2233FRN6Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 6 inches | View Product > |
| HC4704FRN13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 13 inches | View Product > |
| HC9100FRN13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 13 inches | View Product > |
| HC8904FRN13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 13 inches | View Product > |
| HC8904FRN39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 39 inches | View Product > |
| HC2237FHN13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 13 inches | View Product > |
| HC2286FRN12H50 | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 12 inches | View Product > |
| HC9604FRN8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 inches | View Product > |
| HC9650FRN16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 16 inches | View Product > |
| HC4704FRN8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 inches | View Product > |
| HC9700FRN9Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 9 inches | View Product > |
| HC8900FRN26Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 26 inches | View Product > |
| HC6400FRN26Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 26 inches | View Product > |
| HC8500FRN26Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 26 inches | View Product > |
| HC8300FRN8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 inches | View Product > |
| HC9601FHN8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 inches | View Product > |
| HC9804FRN8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 inches | View Product > |
| HC9600FRN8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 inches | View Product > |
| HC8300FRN39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 39 inches | View Product > |
| HC9104FRN8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 inches | View Product > |
| Product ID | Product Name | Shop Now |
|---|---|---|
| HC2216FRS4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 4 Inches | View Product > |
| HC2206FRS3Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 3 Inches | View Product > |
| HC2226FRS6H50 | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 6 Inches | View Product > |
| HC8904FRS13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 13 Inches | View Product > |
| HC9600FRS8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 8 inches | View Product > |
| HC9600FRS16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 16 inches | View Product > |
| HC9600FRS13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 13 inches | View Product > |
| HC8300FRS39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 39 inches | View Product > |
| HC8314FRS39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 39 inches | View Product > |
| HC7500SRS8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 8 inches | View Product > |
| HC9800FRS8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 8 inches | View Product > |
| HC8304FRS39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 39 inches | View Product > |
| HC7400SRS4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 4 inches | View Product > |
| HC9600FRS4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 4 inches | View Product > |
| HC9601FHS13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 13 inches | View Product > |
| HC8300FRS16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 16 inches | View Product > |
| HC9601FHS16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 16 inches | View Product > |
| HC9021FHS4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 4 inches | View Product > |
| HC9800FRS4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 4 inches | View Product > |
| HC8400FRS16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 16 inches | View Product > |
| HC9601FHS8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 8 inches | View Product > |
| HC8900FRS16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 16 inches | View Product > |
| HC9020FRS4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 4 inches | View Product > |
| HC8314FRS16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 16 inches | View Product > |
| HC2296FRS18H50 | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 18 inches | View Product > |
| HC8904FRS39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 39 inches | View Product > |
| HC8900FRS26Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 26 inches | View Product > |
| HC9020FRS8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 8 inches | View Product > |
| HC9100FRS8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 8 inches | View Product > |
| HCG200FRS4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 4 inches | View Product > |
| HC8400FRS26Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 26 inches | View Product > |
| HC9021FHS8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 8 inches | View Product > |
| HC2206FRS6Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 6 inches | View Product > |
| HC9604FRS13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 13 inches | View Product > |
| HC2233FRS13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 13 inches | View Product > |
| HC2286FRS12H50 | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 12 inches | View Product > |
| HC2296FRS36H50 | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 36 inches | View Product > |
| HC8304FRS16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 16 inches | View Product > |
| HC6200FRS8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 8 inches | View Product > |
| HC8900FRS39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 39 inches | View Product > |
| HC9604FRS8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 8 inches | View Product > |
| HC9100FRS4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 4 inches | View Product > |
| HC9604FRS16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 16 inches | View Product > |
| HC2233FRS6Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 6 inches | View Product > |
| HC7400SRS8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 8 inches | View Product > |
| HC9801FHS4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 4 inches | View Product > |
| HC2246FRS6H50 | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 6 inches | View Product > |
| HC8900FRS13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 13 inches | View Product > |
| HC9801FHS8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 8 inches | View Product > |
| HC2286FRS12H50YT | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 12 inches | View Product > |
| HC2216FRS6Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 6 inches | View Product > |
| HC7500SRS4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 4 inches | View Product > |
| HC8700FRS8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 8 inches | View Product > |
| HC2237FHS13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 13 inches | View Product > |
| HC2207FHS6Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 6 inches | View Product > |
| HC4704FRS13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 13 inches | View Product > |
| HC2233FRS10Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 10 inches | View Product > |
| HCG300FRS10Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 10 inches | View Product > |
| HC9606FHS8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 8 inches | View Product > |
| HC9400FRS26Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 26 inches | View Product > |
| HC2217FHS6Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 6 inches | View Product > |
| HC8904FRS26Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 26 inches | View Product > |
| HC2286FRS15H50 | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 15 inches | View Product > |
| HC9100FRS13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 13 inches | View Product > |
| HC6400FRS16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 16 inches | View Product > |
| HC9800FRS13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 13 inches | View Product > |
| HC8400FRS39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 39 inches | View Product > |
| HC2237FHS6Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 6 inches | View Product > |
| Product ID | Product Name | Shop now |
|---|---|---|
| HC9600FRT8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 8 inches | View Product > |
| HC9021FHT4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 4 inches | View Product > |
| HC9600FRT13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 13 inches | View Product > |
| HC9600FRT16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 16 inches | View Product > |
| HC7500SRT8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 8 inches | View Product > |
| HC7400SRT4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 4 inches | View Product > |
| HC9801FHT4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 4 inches | View Product > |
| HC8314FRT39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 39 inches | View Product > |
| HC8400FRT16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 16 inches | View Product > |
| HC9020FRT4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 4 inches | View Product > |
| HC9601FHT8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 8 inches | View Product > |
| HC9601FHT16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 16 inches | View Product > |
| HC9021FHT8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 8 inches | View Product > |
| HC7500SRT4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 4 inches | View Product > |
| HC9601FHT13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 13 inches | View Product > |
| HC8300FRT16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 16 inches | View Product > |
| HC9600FRT4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 4 inches | View Product > |
| HC8304FRT39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 39 inches | View Product > |
| HC9800FRT4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 4 inches | View Product > |
| HC9800FRT8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 8 inches | View Product > |
| HC9601FHT4Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 4 inches | View Product > |
| HC8900FRT16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 16 inches | View Product > |
| HC9801FHT8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 8 inches | View Product > |
| HC8314FRT16Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 16 inches | View Product > |
| HC8904FRT39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 39 inches | View Product > |
| HC2296FRT18H50 | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 18 inches | View Product > |
| HC8900FRT39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 39 inches | View Product > |
| HC8900FRT26Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 26 inches | View Product > |
| HC2296FRT36H50 | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 36 inches | View Product > |
| HC9020FRT8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 8 inches | View Product > |
| HC8900FRT13Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 13 inches | View Product > |
| HC8904FRT26Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 26 inches | View Product > |
| HC9100FRT8Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 8 inches | View Product > |
| HC8300FRT39Z | Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 39 inches | View Product > |
Supralon filters provide
2X better particle removal efficiency compared to ßx(c)≥1000 rated filters
10X better efficiency than common ßx(c)≥200 rated filters
Significantly fewer passes required to reach target cleanliness level
Pall Supralon Benefits
Find your Filter Crossover Tool
Search your existing Pall part number for a replacement Supralon element.
Anti-static construction
Explains how anti static design helps reduce charge accumulation and protect system components.
βX(C)≥ 2000
Shows how high filtration efficiency supports rapid system clean up and improved cleanliness levels.
Stress Resistant Technology
Describes how stress resistant media help maintain consistent filtration performance throughout the filter’s service life.
Downloads
Frequently Asked Questions
What are Supralon filter elements used for?
They are used in hydraulic and lubrication systems to help maintain cleanliness, protect equipment, and reduce contamination related downtime.
What does high filtration efficiency mean?
It refers to the filter’s ability to remove particulate contamination effectively, supporting faster system clean up and improved cleanliness levels.
Are these elements direct replacements for Coralon® and Ultipor® III?
Yes. They replace HC series elements from both product lines and are available in sizes compatible with Ultipor® housings and selected other housings.
What ratings are available?
Ratings include 3, 5, 7, 12, and 25 microns.
How is filtration consistency evaluated?
Consistency is assessed using industry standard performance testing to verify stability over the filter’s service life.
